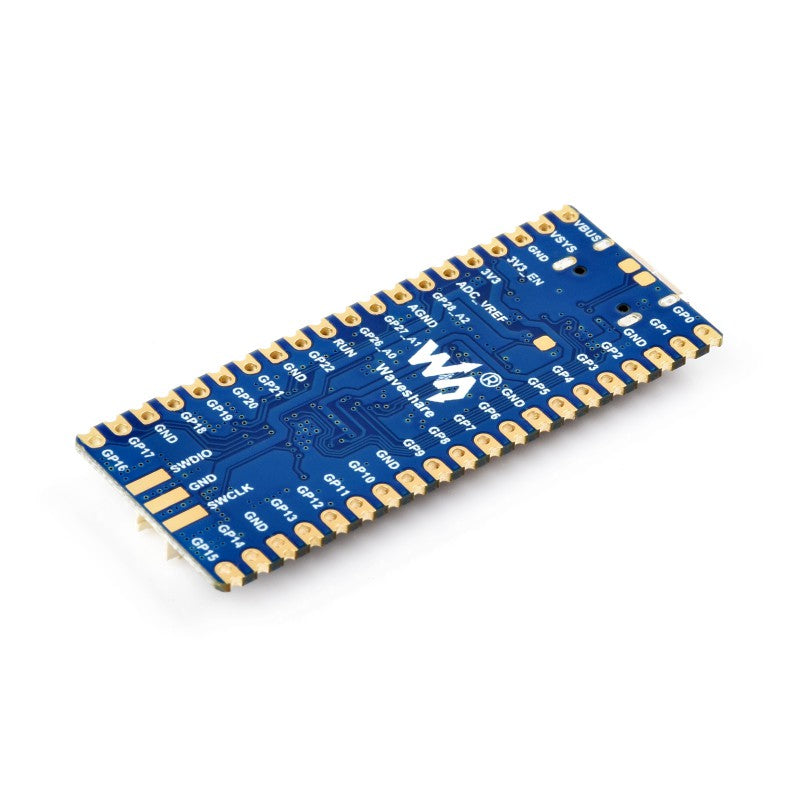

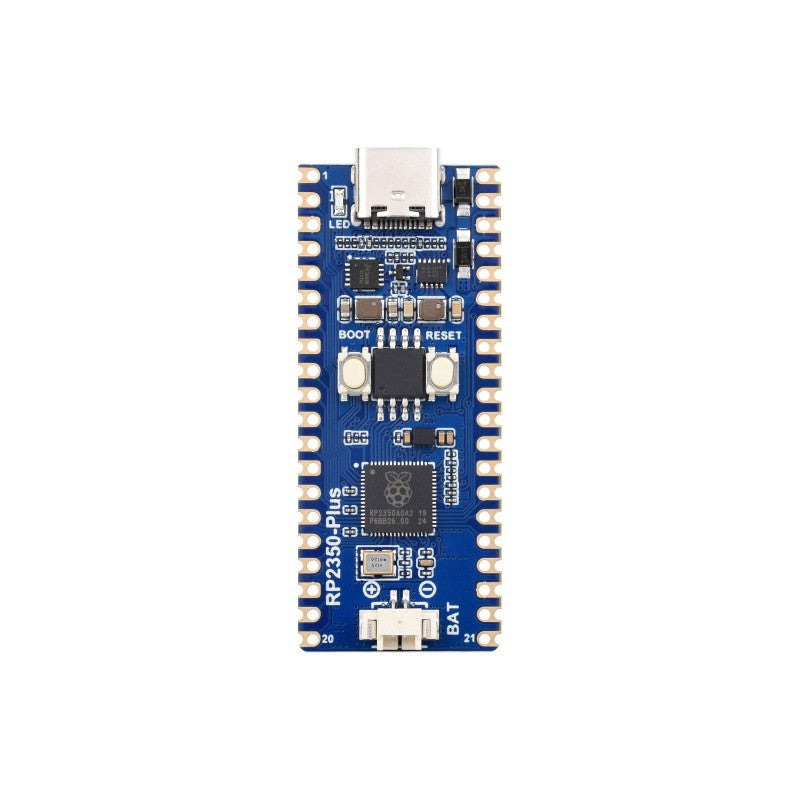

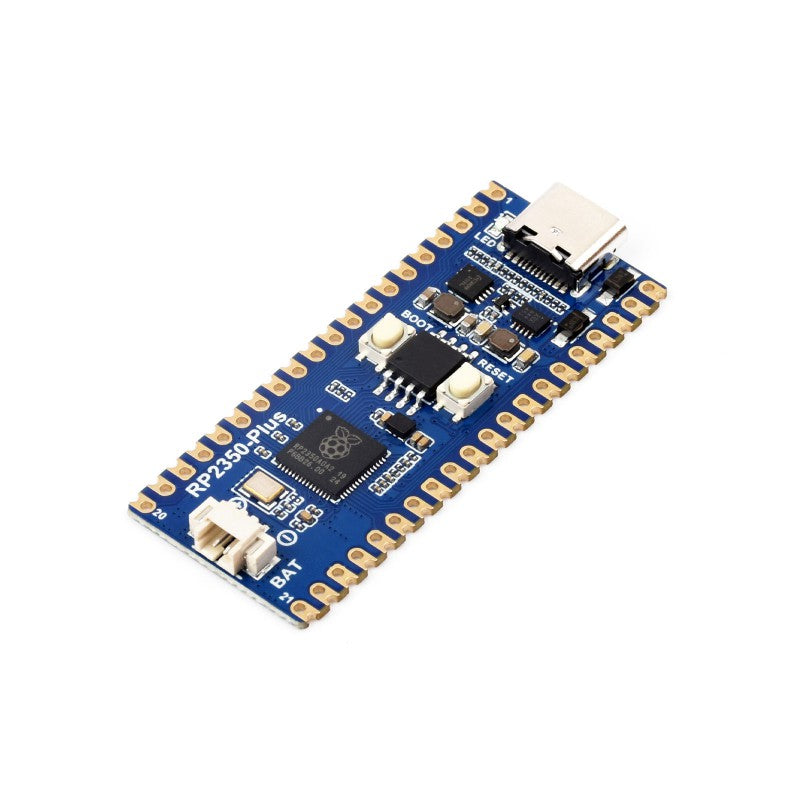

RP2350-Plus Development Board 16MB

High-performance Pico-like MCU Board Based On Raspberry Pi RP2350A

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, options for 4MB/16MB on-board Flash memory
• Type-C connector, keeps it up to date, easier to use
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB

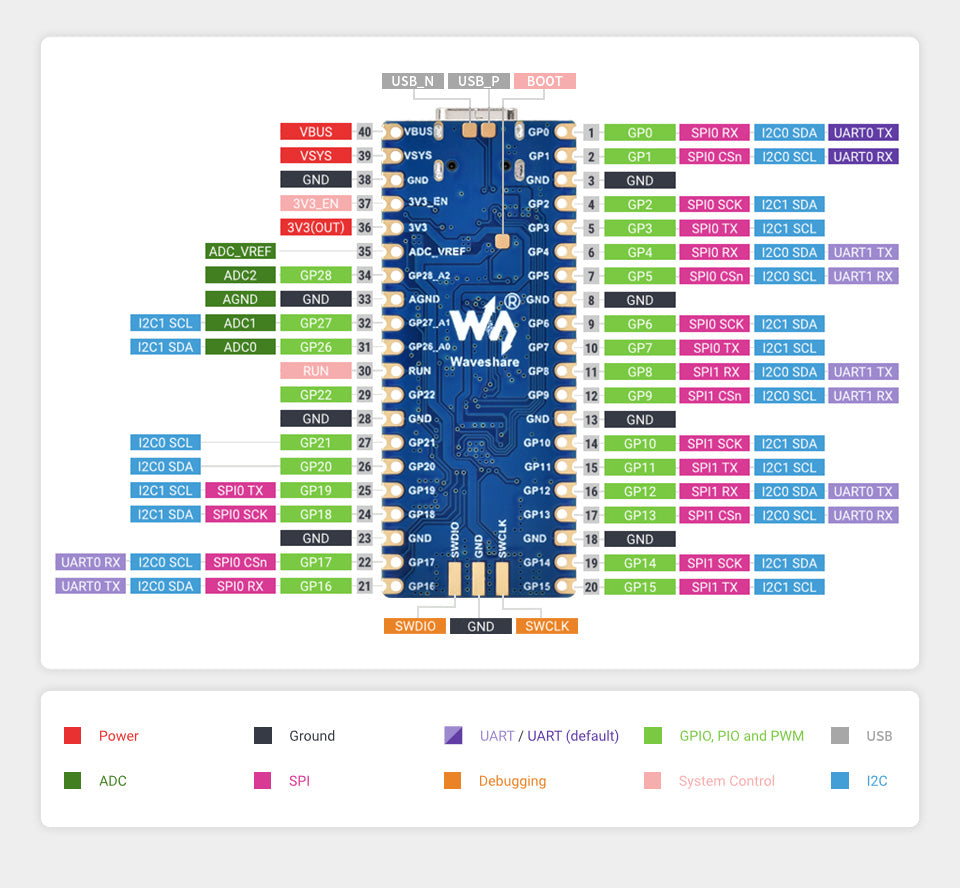

• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support
